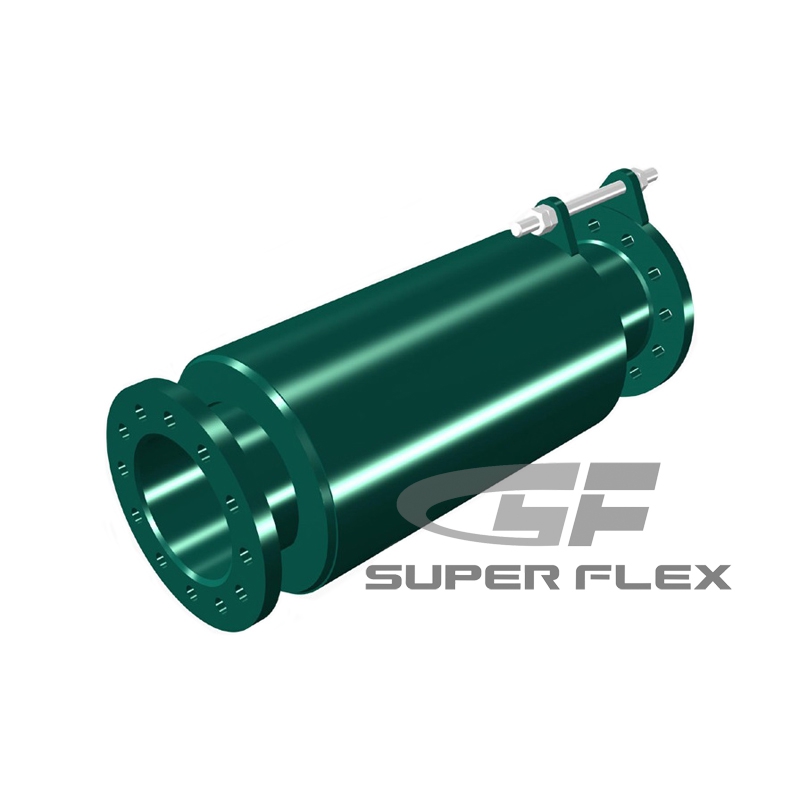

Product Name : Expansion Joint SF-1100
Product Description
  1. The pipe expansion joint consists of a bellow element, an external sleeve and an internal sleeve.  The specific feature is the absorption of piping pressure at the outer side of a bellow for piping axial movement.  Bellows have expansion and contraction action in axial movement with contrast to an internal expansion joint.
  2. Due to external-pressure bellow design, the expansion joint could absorb axial movement via fluid flow in axial movement; therefore, it could be widely applied to the large axial expanding momentum.
  3. The expansion joints have installed an external sleeve to protect bellows so that they are very suitable for a trouble environment and the special working space.

FLANGE TYPE : JIS、ANSI、BS、DIN

Item Parts Material Optional Material
項次 構件 材質 可選用材質
1 伸縮囊 (Bellows) SUS-304 SUS-316
2 法蘭 (Flange) SS-400 SUS-304 / SUS-316
3 側板(Ring Plate) SS-400 SUS-304 / SUS-316
4 外筒(External Cover) SS-400 SUS-304 / SUS-316
5 端管 (Tube End) SS-400 SUS-304 / SUS-316
6 拉桿 (Tie Rod) SS-400 SUS-304 / SUS-316
7 內套管 (Sleeve) SS-400 SUS-304 / SUS-316



SF-1100  性能規格表 Specification
(口徑16"以上規格另行提供，下述工作壓力以常溫25℃為基準)
Nominal Bore Total Length Bellows Axial Movement Working Pressure
口徑
(A)		 總長度
(L)		 內徑
(I.D)		 外徑
(O.D)		 有效長度
(Lb)		 有效面積
(Ae)		 彈性係數
(ƒw)		 軸向變位量
(ΔX)		 工作壓力
(P)
 mm   Ins  mm mm mm mm c㎡ Kg/c㎡ mm    PSI    Kg/c㎡
50 2 600 56 74 300 34 7.4 -60 +60 300 20
65 2-1/2 700 70 90 300 51.3 8.3 -75 +75 300 20
80 3 700 83 104 300 69.1 9.9 -80 +80 300 20
100 4 700 106 130 300 112.2 16.1 -80 +80 300 20
125 5 700 133 161 300 174.4 15.2 -80 +80 300 20
150 6 900 158 187 300 237.8 15.9 -100 +100 300 20
200 8 900 216 247 300 432.3 64.4 -100 +100 300 20
250 10 900 273 309 300 667.8 90.3 -100 +100 300 20
300 12 900 324 359 300 921.9 107.7 -100 +100 300 20
350 14 1000 355 393 300 1108 110.9 -110 +110 300 20
