Product Name : SF-600L Special Type Joint / Isolation Layer Type Expansion Joint
Product Description

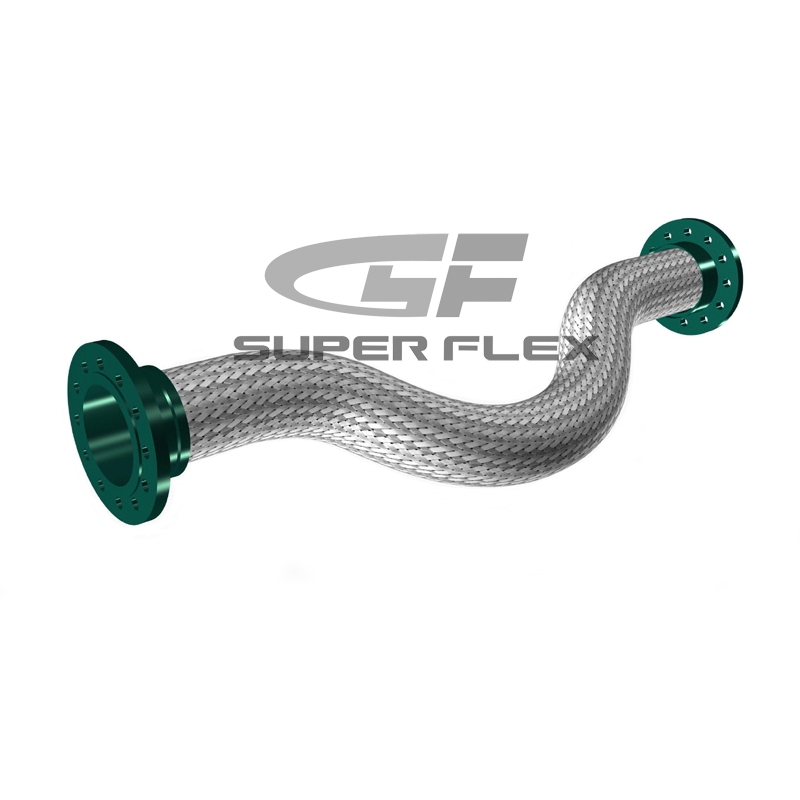

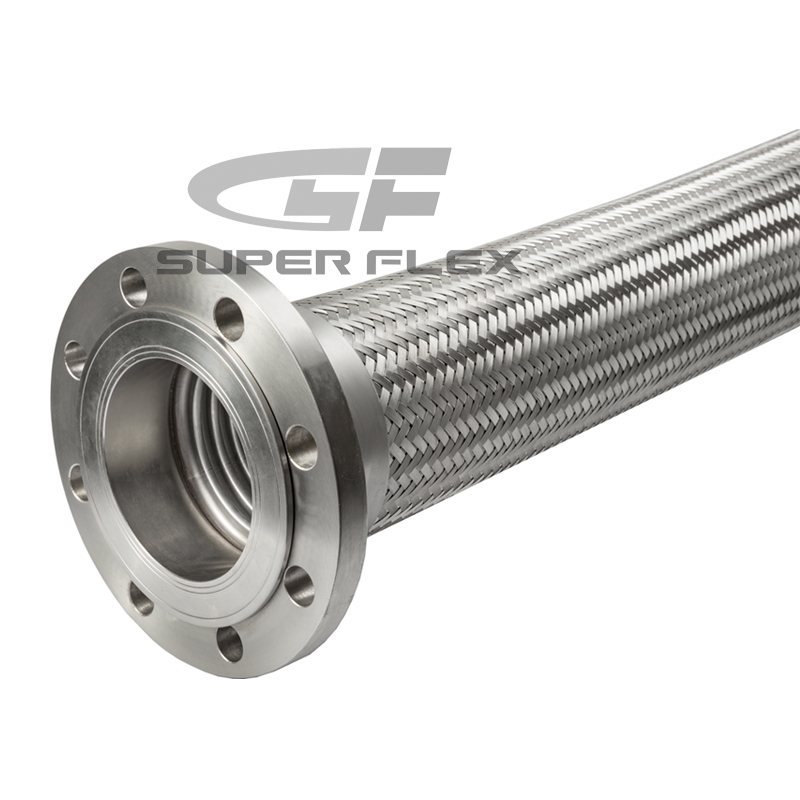

  1. The expansion joint consists of a single bellow covered by stainless wire braid, which is attached by flanges as ends, but its end type could be requested.
  2. The high flexible feature of metal hoses has the resistance of temperature variation, light weight, and less volume. Therefore, these products have been widely applied to the connection for various industry pipes and delivery systems.
  3. A flexible function and repeatedly bending operation could setup metal hoses at the larger offset of a piping location.



FLANGE TYPE : JIS、ANSI、BS、DIN

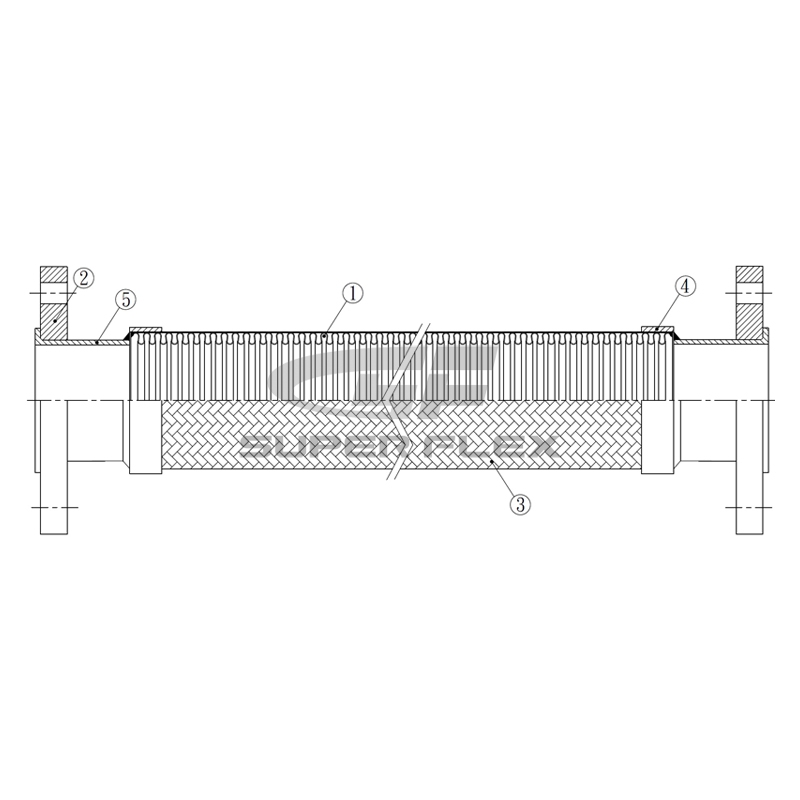

Item Parts Material Optional Material
項次 構件 材質 可選用材質
1 伸縮囊 (Bellows) SUS-304 SUS-316
2 法蘭 (Flange) SUS-304 SS-400 / SUS-316
3 編織網 (Wire Braid) SUS-304 -
4 套環 (Seal Ring) SUS-304 SUS-316
5 襯套(Lap Joint) SUS-304 SUS-316
SF-600L  性能規格表 Specification
(口徑10"以上規格另行提供，下述工作壓力以常溫25℃為基準)
Nominal Diameter 伸縮囊 Bellows 最小彎曲半徑 Mim Bend Radius Wier Braid  Working Pressure
口徑
(A)		 內徑
(I.D)		 外徑
(O.D)		 板厚
(T)		 靜態
Static State		 反覆
Dynamic State		 編織網層數
The Number Of Ply		 工作壓力
(P)
 mm   Ins  mm mm mm mm mm Ply    PSI    Kg/c㎡
15 1/2 12.7 16.3 0.25 20 115 1 300 20
20 3/4 17.5 22.3 0.25 25 145 1 300 20
25 1 25 33 0.25 90 200 1 300 20
32 1-1/4 31 41 0.25 110 250 1 300 20
40 1-1/2 39 52 0.3 130 250 1 300 20
50 2 52.5 70 0.3 175 305 1 300 20
65 2-1/2 65 84.5 0.4 200 330 1 240 16
80 3 76 96 0.4 230 355 1 240 16
100 4 102 125 0.4 235 560 1 195 13
125 5 127 153 0.5 280 660 1 150 10
150 6 150 175 0.5 320 810 1 150 10
200 8 203 231 0.6 350 930 1 150 10

Nominal Diameter 伸縮囊 Bellows 最小彎曲半徑 Mim Bend Radius Wier Braid   Working Pressure
口徑
(A)		 內徑
(I.D)		 外徑
(O.D)		 板厚
(T)		 靜態
Static State		 反覆
Dynamic State		 編織網層數
The Number Of Ply		 工作壓力
(P)
 mm   Ins  mm mm mm mm mm Ply    PSI    Kg/c㎡
65 2 1/2 65 84.5 0.4 200 330 2 300 20
80 3 76 96 0.4 230 355 2 300 20
100 4 102 125 0.4 235 560 2 300 20
125 5 127 153 0.5 280 660 2 300 20
150 6 150 175 0.5 320 810 2 300 20
200 8 203 231 0.6 350 930 2 300 20
