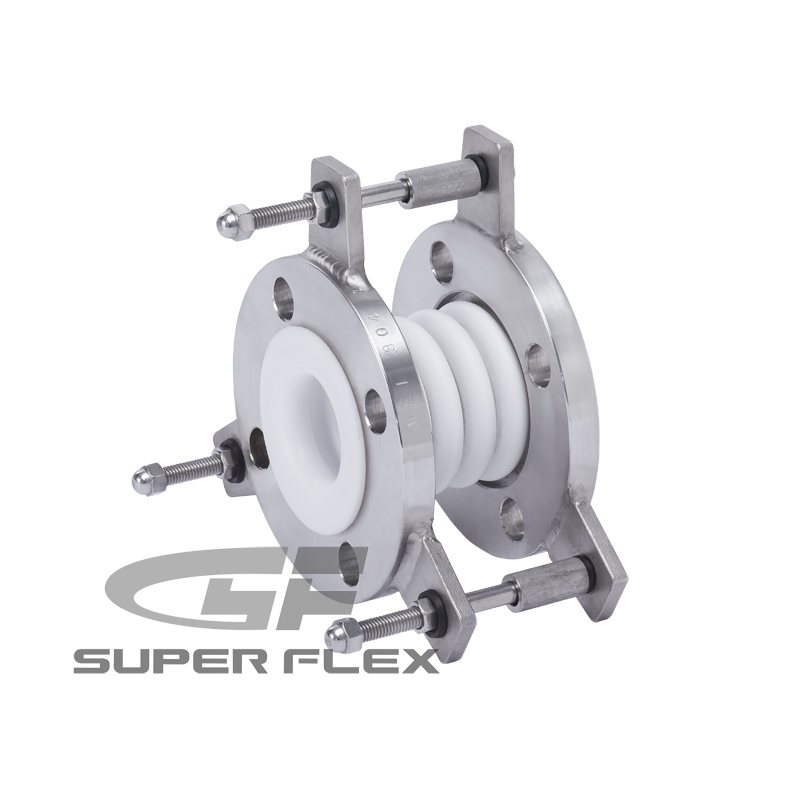

Product Name : Special Type Joint SF-9061
Product Description
  1. This special bellow material is designed to resist acid or alkali fluids and could be applied to a piping system of chemical industries.
  2. The anti-viscous feature has the specific low friction applications.
  3. Excellent mechanical specification could endure to vibration and keep its flexibility for a while.
  4. It could not reactive with atmosphere so that away aging problems.

FLANGE TYPE : JIS、ANSI、BS、DIN

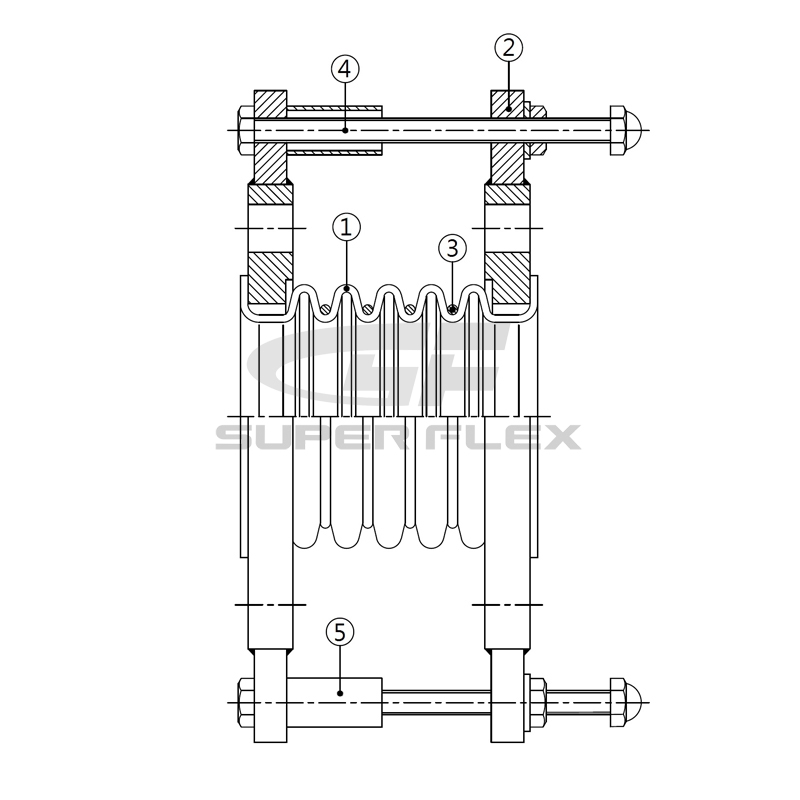

Item Parts Material Optional Material
項次 構件 材質 可選用材質
1 伸縮囊 (Bellows) P.T.F.E -
2 法蘭 (Flange) SS-400 SUS-304/SUS-316
3 強化環(Reinforced) SUS-304 -
4 拉桿(Tie Rod) SS-400 SUS-304/SUS-316
5 限制管(Limit Pipe) SS-400 SUS-304/SUS-316
SF-9061-3  性能規格表 Specification

Nominal Bore Total Length Bellows Axial Movement Lateral Movement
口徑 總長度 山數 內徑 厚度 液體面積 伸縮量 橫向位移
 mm   Ins  mm corr′s No. mm mm mm² mm mm mm
25 1 45 3 19 3 55 +10 -10 3
32 1-1/4 50 3 28 3 73 +10 -10 3
40 1-1/2 55 3 35 3 73 +10 -10 3
50 2 70 3 46 3 92 +15 -15 3
65 2-1/2 75 3 62 3 105 +15 -20 3
80 3 80 3 75 3 127 +15 -25 3
100 4 90 3 100 3 155 +15 -25 3
125 5 95 3 122 3.5 180 +15 -25 3
150 6 100 3 147 3.5 215 +20 -30 3
200 8 110 3 198 3.5 265 +20 -35 3
250 10 130 3 250 4.5 325 +25 -35 3
300 12 145 3 300 5 370 +25 -35 3
SF-9061-5  性能規格表 Specification

Nominal Bore Total Length Bellows Axial Movement Lateral Movement
口徑 總長度 山數 內徑 厚度 液體面積 伸縮量 橫向位移
 mm   Ins  mm corr′s No. mm mm mm² mm mm mm
25 1 75 5 19 3 55 +15 -10 10
32 1-1/4 90 5 28 3 73 +15 -10 10
40 1-1/2 90 5 35 3 73 +20 -15 10
50 2 100 5 46 3 92 +20 -20 10
65 2-1/2 110 5 62 3 105 +20 -25 10
80 3 120 5 75 3 127 +20 -35 10
100 4 130 5 100 3 155 +20 -40 10
125 5 145 5 122 3.5 180 +20 -40 10
150 6 150 5 147 3.5 215 +30 -45 10
200 8 150 5 198 3.5 265 +35 -50 10
250 10 190 5 250 4.5 325 +40 -50 10
300 12 210 5 300 5 370 +40 -50 10
