Problems for Abnormal Applications


Flexible Joint - Bellows Perforation
Cause Analysis : Bellows External Corrosion
proimages/pro/技術支援/不銹鋼防震接頭---外部腐蝕1.jpg

proimages/pro/技術支援/不銹鋼防震接頭---外部腐蝕2.jpg


Flexible Joint - Bellows Instability
Expansion Joint - A bending occurrence during a piping pressure test
Cause Analysis : Mis-installation of a 16K grade piping system in a 10K grade product.
proimages/pro/技術支援/系統壓力過載.jpg

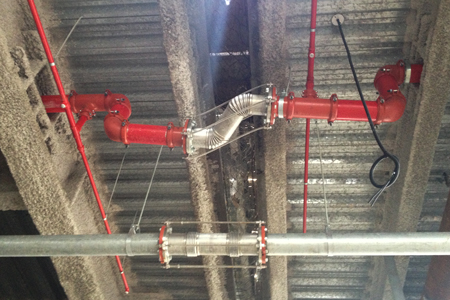

Cause Analysis : Lacks of main anchors for piping support

proimages/pro/技術支援/不銹鋼橫向伸縮接頭(管路不當固定方式)-2.jpg


Rubber Flexible Joint - Broken on the flange surfaces
Cause Analysis : Damaged from the protruding portion of a valve component
proimages/pro/技術支援/橡膠防震接頭-法蘭接觸面破裂-1.JPG


proimages/pro/技術支援/橡膠防震接頭-法蘭接觸面破裂-2.JPG
